Single Row Deep Groove Ball Bearings

Bearing No.: BL411

Type

Clearance

> 0,008-0,028

Tolerance class

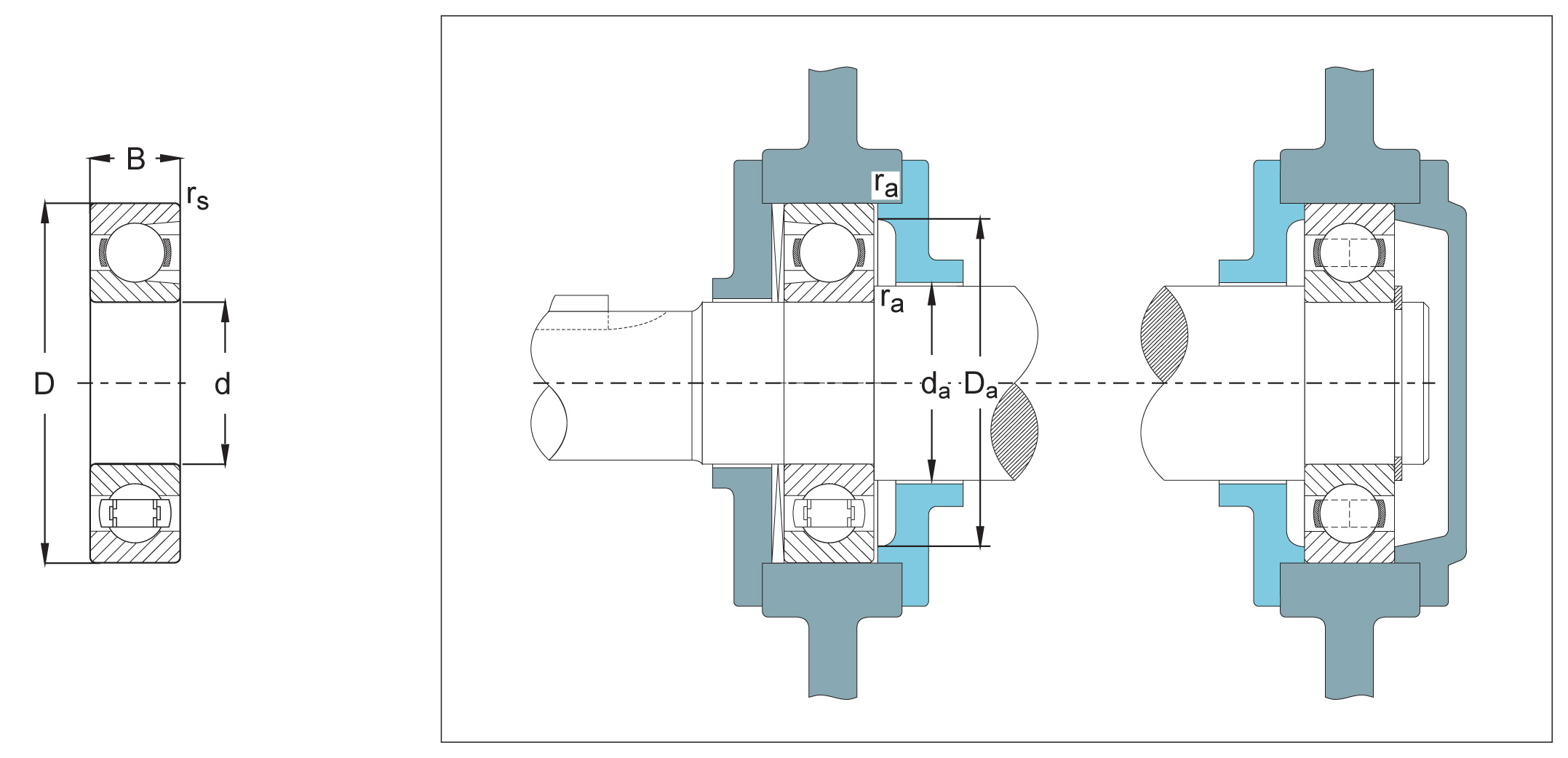

Boundry dimensions (mm)
d = 55 -0,015
D = 140 -0,018
B = 33 -0,150
rs min = 2,1

Mounting dimensions (mm)
da min = 68
da max = 0
Da max = 126
ra max = 0

Weight
2,53 kg
Basic Load Rating (kN) Limiting Speeding (min -1) Radial Runout (mm)
Dynamic Cr = 108,5
Static Cor = 89,6
Crease Lubrication = 4 800
Oil Lubrication = 5 600
Inner Ring = 0,02
Outer Ring = 0,04
